Port Salat Baru

Overview

Check out the information about our port.

BAT Location & Port Layout

From
To
Tamtama Perkasa

EBP Salat Baru
123.5 nm
BAT Bintang Ninggi

EBP Salat Baru
105 nm
AKT Muara Tuhup

AKT Damparan
175 nm
EBP Salat Baru

Taboneo
155 nm
AKT Damparan

Taboneo
149 nm
Hasnur/5. Puting

Taboneo
61 nm
TOP

Taboneo
251 nm
Talang Baru

Taboneo
129 nm

Port Permit

1

Operational Permit

Minister of Transportation Decision Number: 139 Year 2014 Regarding: Granting permission to PT Bahtera Alam Tamiang to operate a special coal mining terminal in Salat Baru Village, Karau Kuala Subdistrict, South Barito Regency, Central Kalimantan Province.

Director General of Sea Transportation Decision Number: BX_100/PP 008 Regarding: Temporary use permit for the special terminal of PT Bahtera Alam Tamiang in Salat Baru Village, Karau Kuala Subdistrict, South Barito Regency, Central Kalimantan Province to serve the public interest.

Director General of Sea Transportation Decision Number: BX_600/PP 008 Regarding: Determination of 24 (Twenty-Four) Hour Service Improvement for the Special Coal Commodity Terminal of PT Bahtera Alam Tamiang in Salat Baru Village, Karau Kuala Subdistrict, South Barito Regency, Central Kalimantan Province to serve the public interest.

2

Environmental Permit

Central Kalimantan Governor's Decision Number: 188.44/1046/2013 Regarding: Environmental feasibility of the development of a special coal terminal in Karau Kuala Subdistrict, South Barito Regency, Central Kalimantan Province by PT Bahtera Alam Tamiang.

Central Kalimantan Governor's Decision Number: 188.44/1047/2013 Regarding: Environmental permit for the development of a special coal terminal in Karau Kuala Subdistrict, South Barito Regency, Central Kalimantan Province by PT Bahtera Alam Tamiang.

Facilities Overview & Performance

Facilities Overview

    • Stockpile Capacity
    • 300kTonnes
    • Total Area
    • 5.4 Ha
    • Loading System
    • BLC capacity 1,000 mt/hr (avg. 750 tph)
    • Unloading System
    • Liebherr crane capacity 500 tph (grab 12 mt, avg. 10 mt)
      BLC capacity 500 mt/hr (avg. 350 tph)
    • Heavy Equipment
    • Wheel loader, wheel dozer, excavator, and dump truck
    • Power Supply
    • 2x450kVA and 3x350kVA
    • Metal Detector
    • 1 unit
    • Working Time
    • About 24 hrs operational time or 2 shifts a day
    • Other Info
    • Water level minimum 13 m and maximum 18 m (all seasons)

Port Performance

    • Loading Rate
    • 300"
    • Barge Cap 7,500 Mt, 10 - 12 hrs
    • Uploading Rate
    • 230”
    • Barge Cap 3,500 Mt, 8 - 10 hrs
    • Number of Barges
    • Barge Capacity up to 330 ft dan avg tonnage up 10.000 Mt
    • From Salat Baru - Anchorage
    • Spot Charter 300” (avg. tonnage 7,500 Mt)
    • Barges Time Travel - Empty
    • Anchorage to Banjarmasin
    • 10 hrs
    • Barges Time Travel - Loaded
    • Banjarmasin to Anchorage
    • 8 hrs

Photos - Unloading Facility

Port Image 1

Unloading Facility

Liebherr crane capacity 500 tph with grab capacity 13 mt

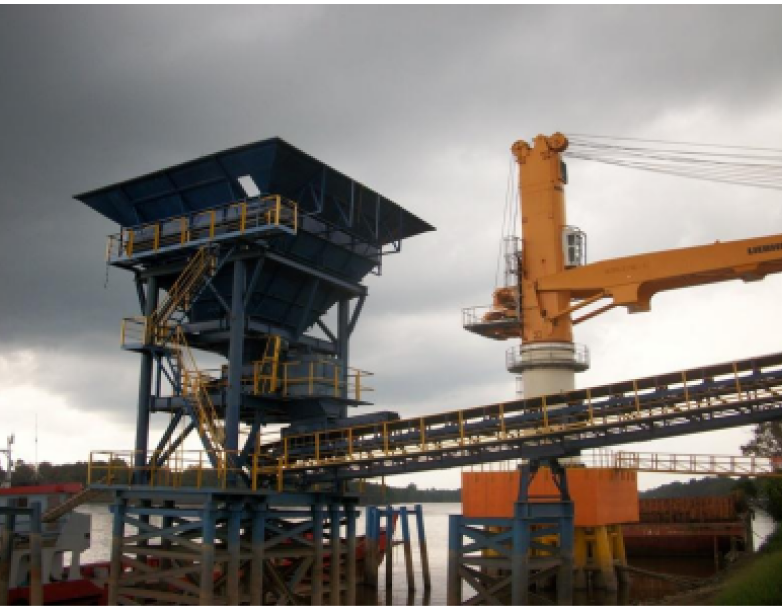

Port Image 2

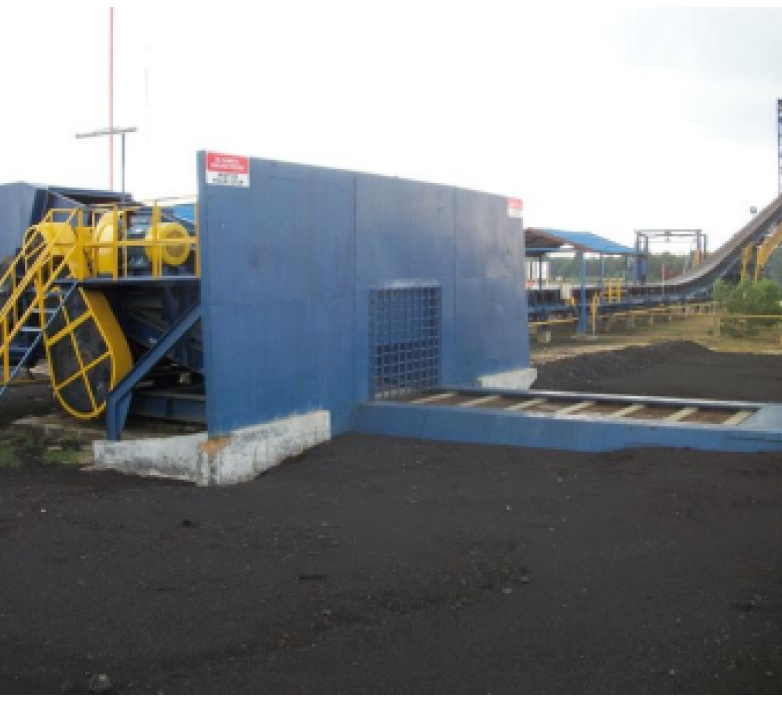

Unloading Facility

Hopper receiver capacity = 40 m3 (6 m x 6 m x 3.7 m) Belt Feeder Length = 4 m type belt BW 1200 grade M

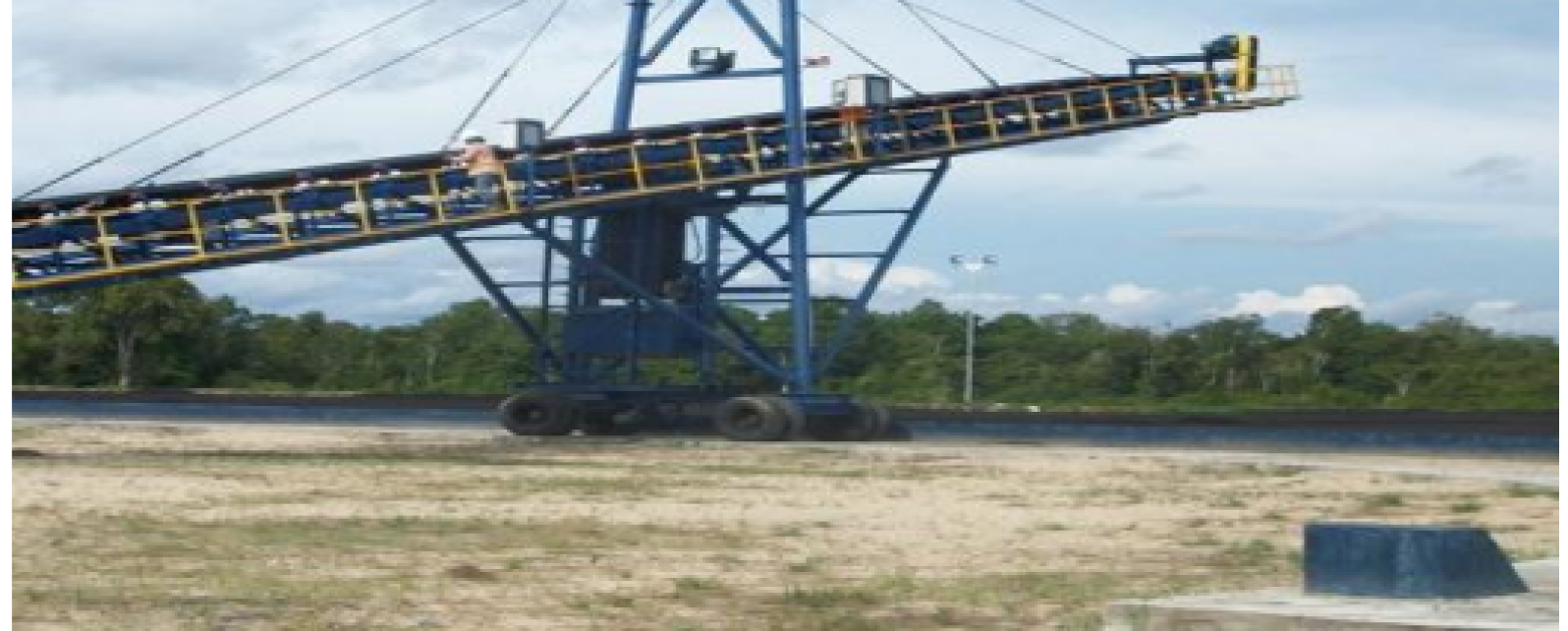

Port Image 2

Unloading Facility

Radial stacker cap 500 tph, length = 41 m Belt BW 1000 grade M Using wheel drive 2 x 3.7 kW

Photos - Loading Facility

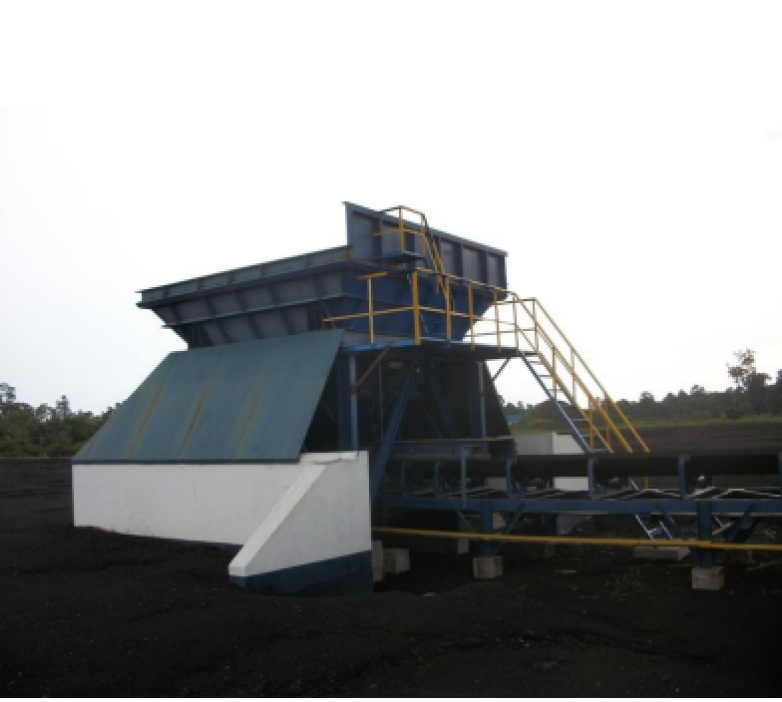

Port Image 1

Loading Facility

Hopper receiver capacity 1,000 tph

Port Image 2

Loading Facility

Ground feeder capacity 1,000 tph

Port Image 2

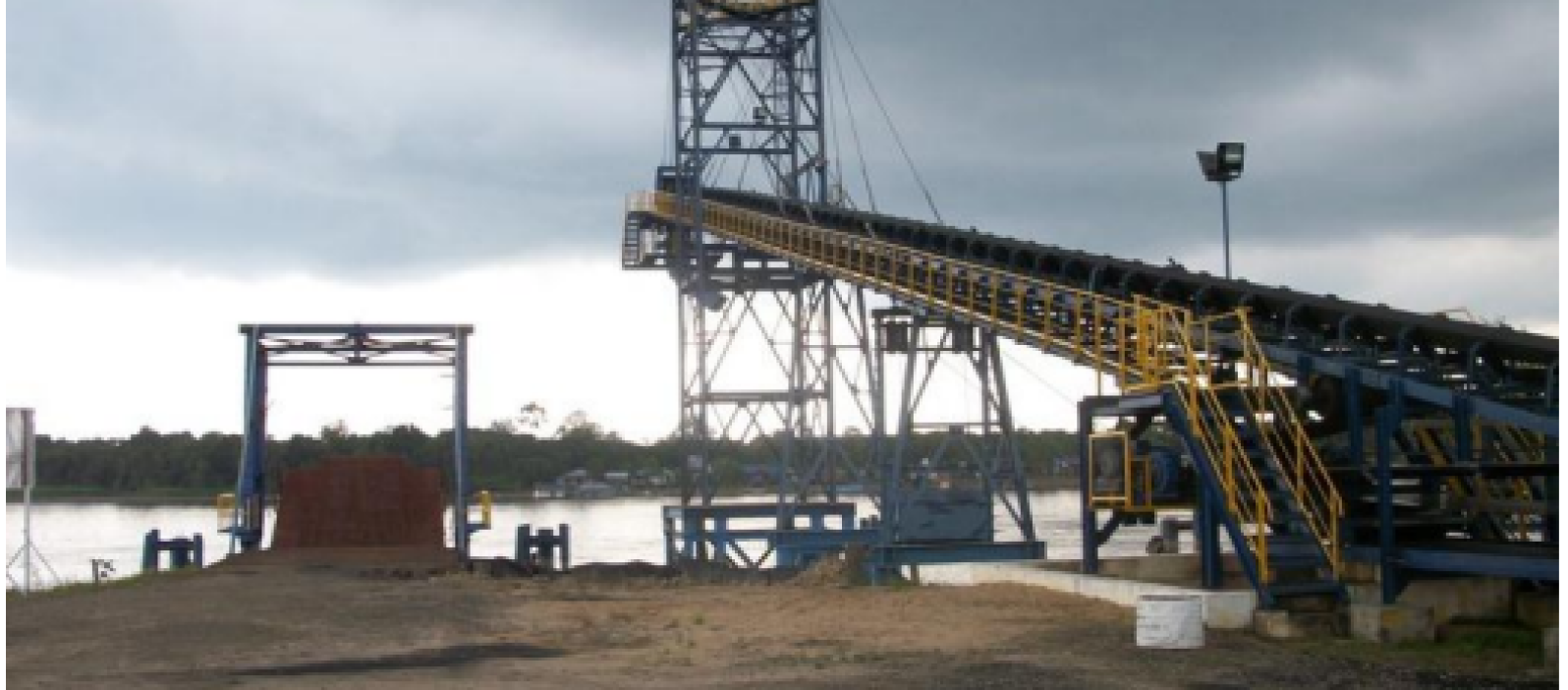

Loading Facility

Loading conveyor belt BW 1,000 grade M, length = 97 m capacity 1,000 tph

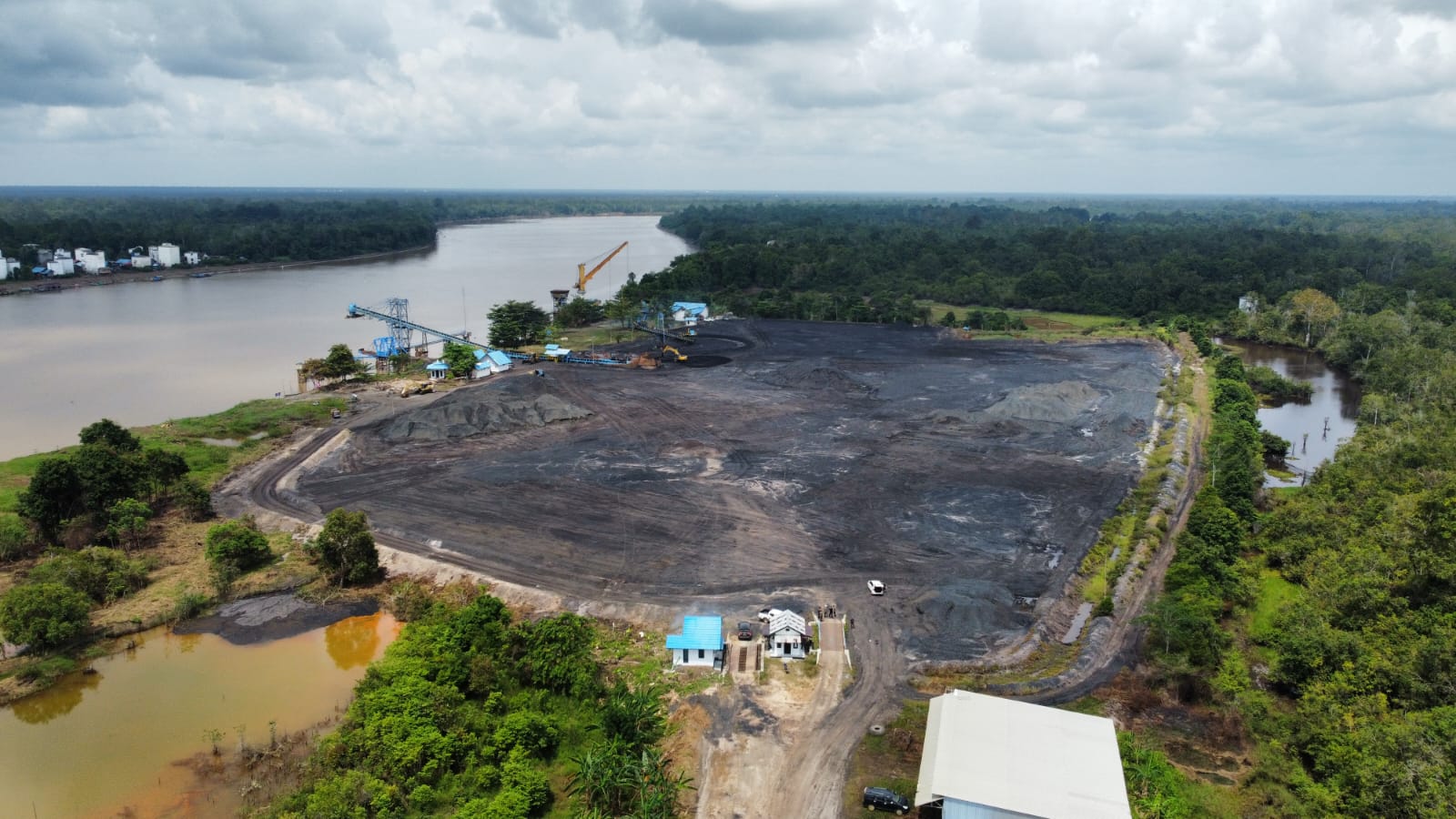

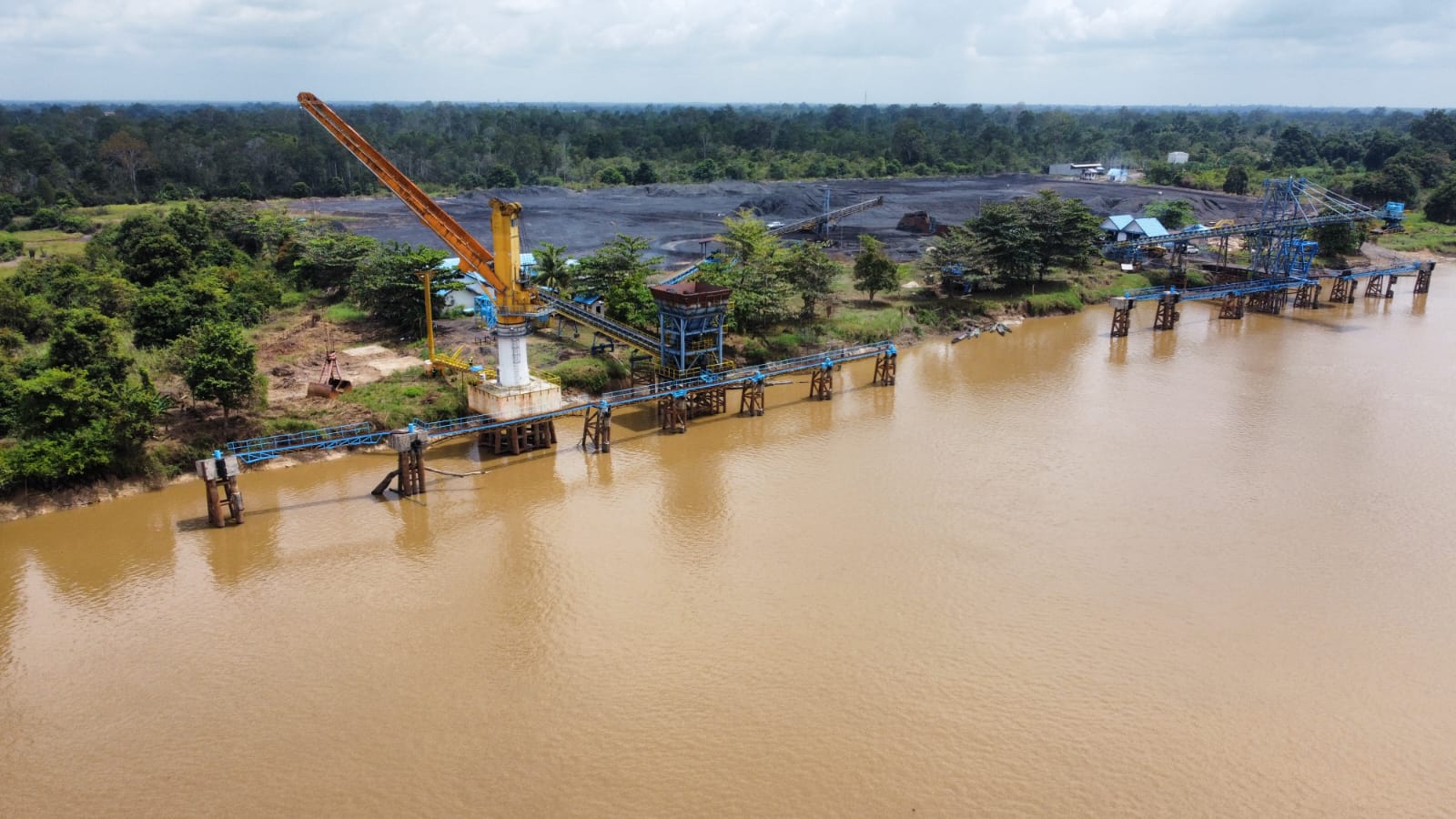

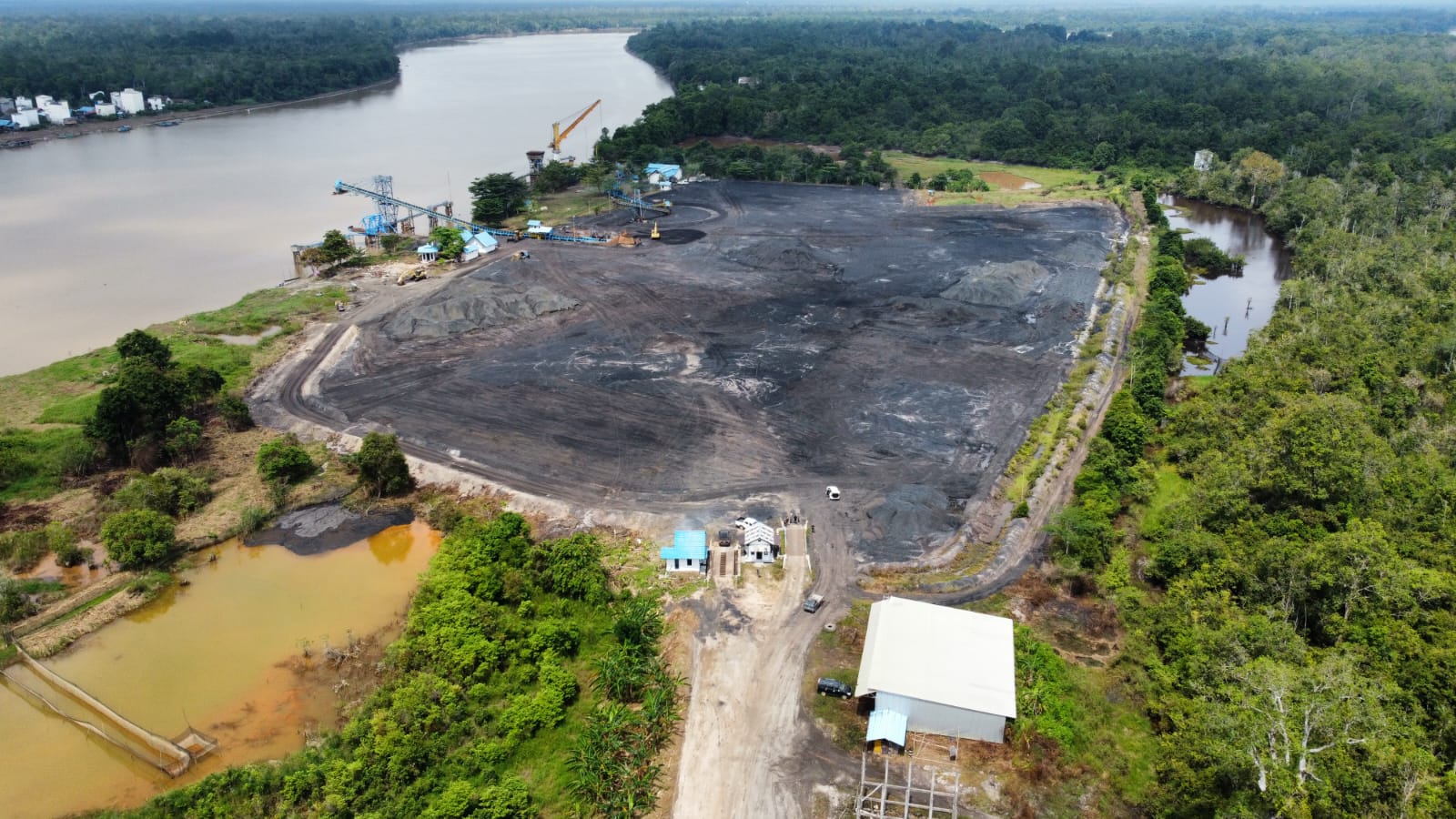

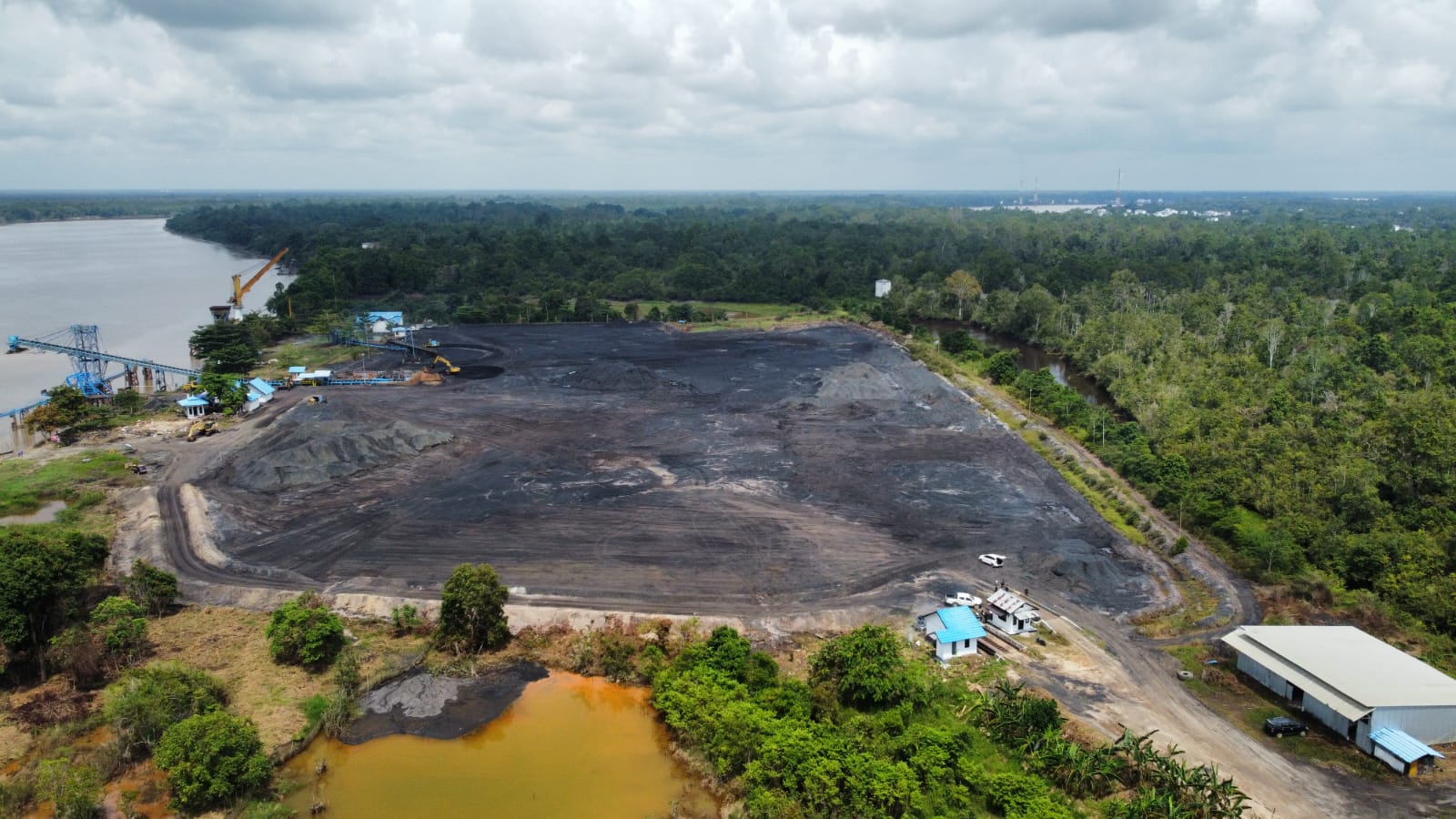

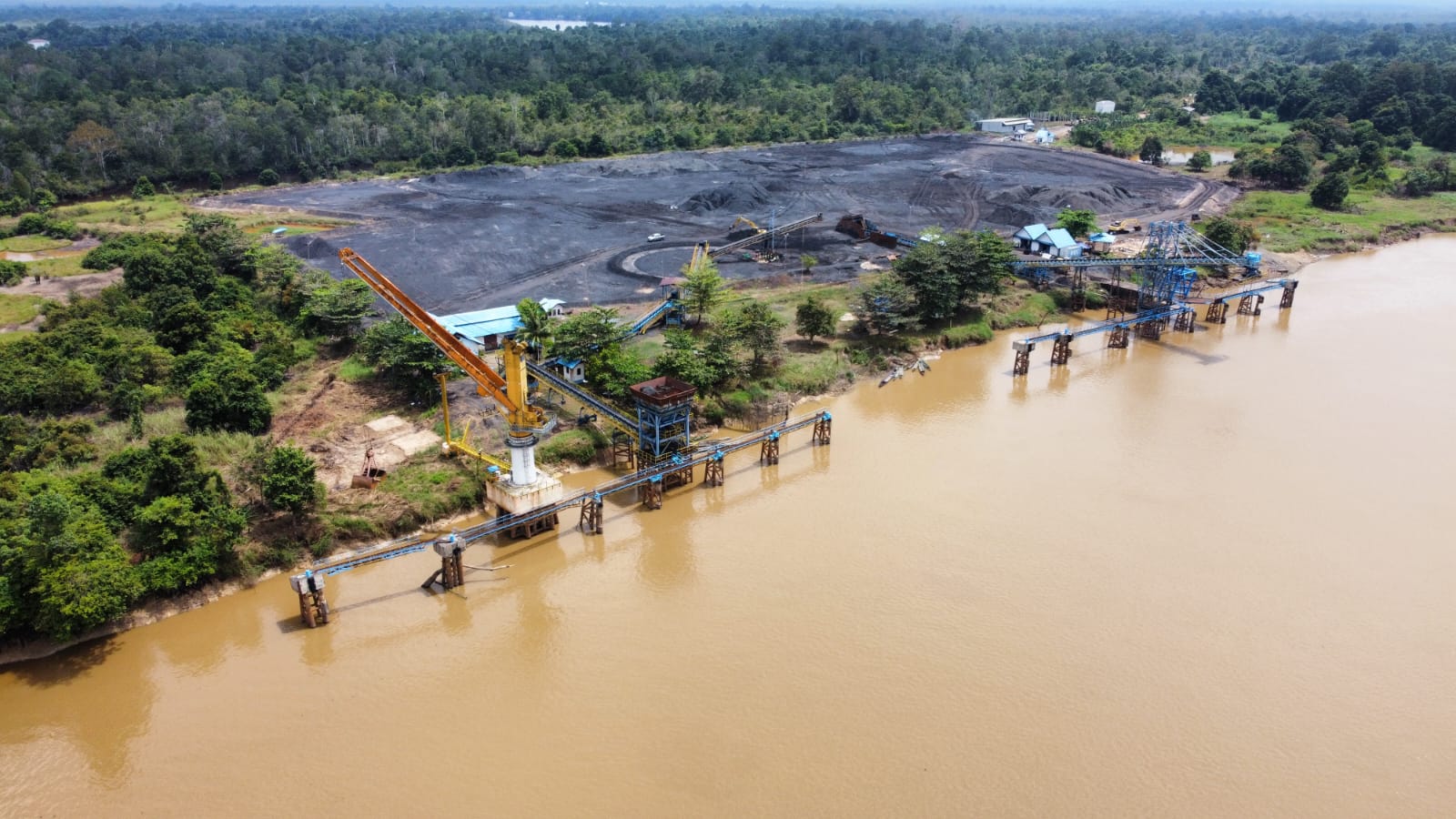

Gallery
